Heavy Duty 90 Degree Wall to Glass Shower Door Hinge - Solid SUS304 Stainless Steel Frameless Glass Clamp

GH-90WG-B
Heavy duty 90° wall-to-glass frameless shower door hinge in solid SUS304 stainless steel. Self-closing dual-swing mechanism, supports 8-12mm glass up to 45kg per pair. Available in matte black, polished chrome, brushed nickel and satin brass.
Quantity:
Contact Now
add to cart
All Products

Heavy Duty 90 Degree Wall to Glass Frameless Shower Door Hinge (Solid SUS304)

Engineered for premium performance and sleek modern aesthetics, the Gorgeous Hardware 90° Wall-to-Glass Shower Door Hinge is the ideal solution for frameless glass shower enclosures. Precision-crafted from heavy-duty SUS304 stainless steel, it provides exceptional structural rigidity, durability, and corrosion resistance in high-moisture bathroom environments.

Key Features & Benefits

  • Solid SUS304 Stainless Steel Construction: Precision forged and stamped from high-grade 304 stainless steel, preventing rust, pitting, and corrosion even in humid environments.
  • Smooth Self-Closing Mechanism: Features durable dual-spring internal mechanics. Supports dual-direction 90° swing with automatic self-closing action when the door reaches within 25°-30° of the closed position.
  • High Load Bearing Capacity: Sturdy 4mm thick mounting plate easily supports doors up to 45 kg (99 lbs) per pair, suitable for 8mm to 12mm (5/16"to 1/2") toughened safety glass.
  • Glass Protection & Secure Grip: Includes anti-aging, high-friction neoprene gaskets that prevent glass slippage and eliminate surface scratches while absorbing door-closing impact.
  • Architectural Grade Finishes: Available in luxury Matte Black, Polished Mirror Chrome, Brushed Nickel, and Satin Brass/Gold, matching top-tier bathroom tapware and sanitary fixtures.
  • Easy Installation: Pre-drilled counter-sunk mounting holes. Includes stainless steel mounting screws, wall plugs, and an adjustment hex key.

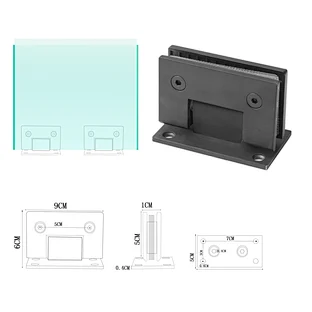

Technical Specifications

MaterialSolid SUS304 Stainless Steel
Configuration90 Degree Wall-to-Glass Clamp
Suitable Glass Thickness8mm, 10mm, 12mm (5/16"to 1/2")
Max Load Capacity45 kg (99 lbs) / 2 hinges
Available FinishesMatte Black, Polished Chrome, Brushed Nickel, Satin Brass
Closing Mechanism90° In/Out swing; Self-closing from 25°-30°
ApplicationsFrameless Glass Shower Enclosures, Luxury Hotel Bathrooms

Why Choose Gorgeous Hardware?

  • Direct Manufacturer: Over 16 years of OEM/ODM hardware manufacturing expertise with 3 factory bases spanning 10,000+ sqm.
  • Rigorous Quality Control: Strict 4-stage inspection with 48h-72h salt spray testing.
  • Global Experience: Exported to 60+ countries worldwide.
