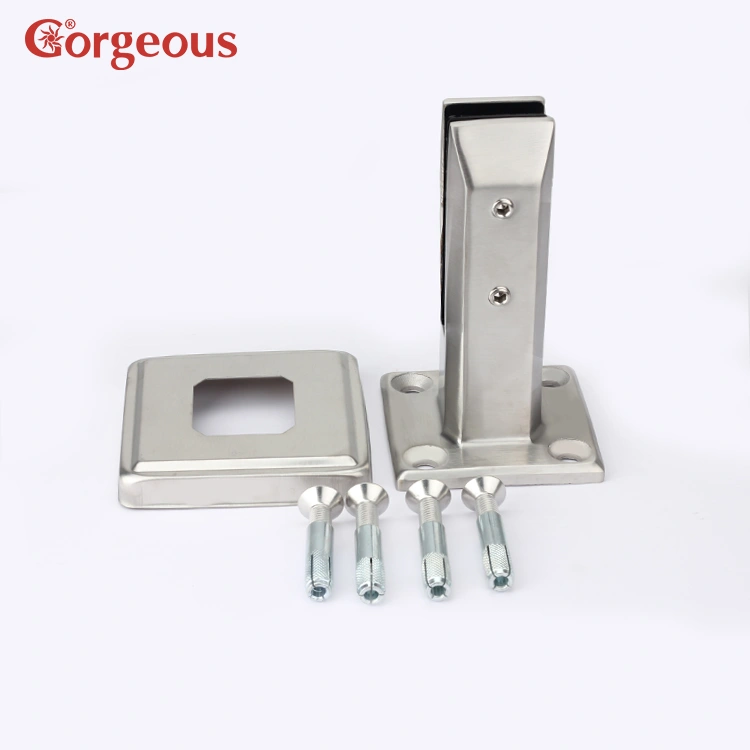

Precision Cast Stainless Steel Glass Spigot Glass Clamp for Frameless Glass Railing - Model C491
Stainless Steel Glass Spigot & Glass Clamp for Frameless Glass Railing - Model C491
- High Performance: Precision cast stainless steel glass spigot with a rigid square base plate that locks frameless glass panels firmly in place on balconies, staircases and terraces.
- Precision Engineering: Four-hole countersunk base plate, dual locking screws and full-length rubber gasket in the glass slot protect the panel edge and keep the glass spigot perfectly vertical.
- Surface Durability: SUS 304 / 316 stainless steel with satin or mirror finish, salt spray tested for outdoor coastal projects, so every glass clamp keeps its appearance for years.
- OEM / ODM Supported: Custom glass thickness, base plate size, finish and laser logo available; each glass spigot is packed with a decorative cover plate and four expansion anchor bolts.
* Precision engineered glass spigot by Gorgeous Hardware.
Technical Specifications
| Product Name | Glass Spigot / Glass Clamp | Model Number | C491 (P113) |
|---|---|---|---|
| Main Material | Precision Cast Stainless Steel SUS 304 / 316 | Standard Colors | Satin Brushed / Mirror Polished (Customizable) |
| Application | Frameless glass railing, glass balustrade, handrail and spider solution systems | Dimension / Load | Multiple Sizes Available (Customizable) |
| Standard Package | Polybag + Inner Box + Export Carton | Warranty | 3 - 5 Years Guarantee |
| MOQ | 500 PCS (Negotiable) | Lead Time | 30 - 40 Days |
How This Glass Spigot Is Built
A glass spigot is the small but critical load-bearing part of every frameless glass railing, and model C491 is built for specifiers who cannot afford movement at the base. The body is investment cast in a single piece, then machined on CNC centres so the glass slot stays parallel from end to end. Because the body and the base plate are one casting, the glass spigot transfers wind load and crowd load directly into the substrate instead of relying on welded joints.
Four countersunk holes on the square base plate accept M10 expansion anchor bolts, which we supply with every set, so the glass spigot can be fixed to concrete, masonry or steel embed plates on site. A brushed stainless cover plate slides over the base afterwards, hiding the bolts and giving the finished glass clamp the clean, uninterrupted look designers ask for. Inside the slot, a continuous rubber gasket protects the glass edge and isolates the panel from metal contact.
Two locking screws on the face of the glass spigot allow the installer to fine-tune plumb after the panel is set, which is normally the slowest step on a balustrade project. Choose SUS 304 for inland sites and SUS 316 for coastal or poolside projects where chlorides attack standard stainless. Each glass clamp is available in satin or mirror finish, and we can match your glass thickness and base plate footprint on request.
International Quality Certifications
Our factory operates under ISO 9001, ISO 14001 and ISO 45001 management systems. Every batch of this glass spigot is checked by spectrometer, CNC dimension gauge, coating thickness meter and neutral salt spray test before packing.
Custom Packaging & On-Time Delivery Workflow
Comprehensive OEM & Branding Solutions
Factory Manufacturing & Production Lines
Global Exhibition & Customer Trust
Frequently Asked Questions (FAQ)
Ready to Upgrade Your Glass Railing Project?
Contact our engineering sales team for wholesale step-pricing, free samples, and tailored OEM solutions for this glass spigot. We respond within 8 business hours.
