Mirror Polished 304 Stainless Steel Square Glass Spigot Post Railing Fitting - G-C917

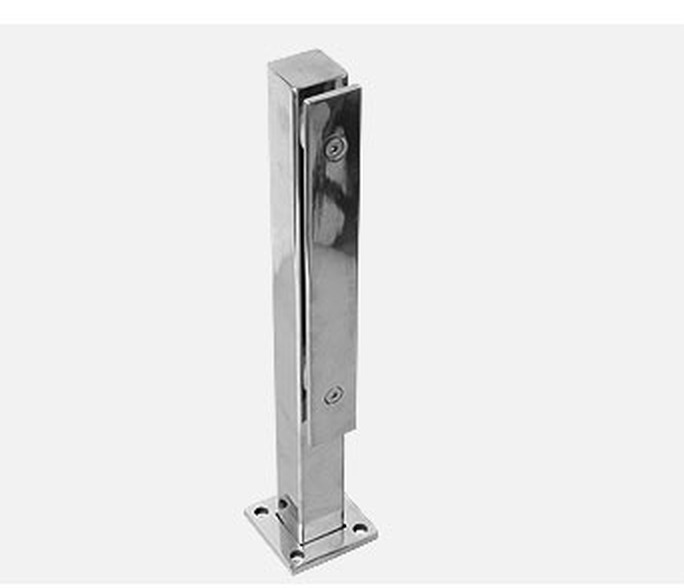

Square Glass Spigot Post - Stainless Steel Glass Spigot G-C917
- Structural Strength: This spigot post uses a 40 x 40 mm square stainless steel tube on a 78 x 78 mm base plate with four countersunk anchor holes, so each post carries the glass panel without a bottom shoe profile.
- Frameless Look: The post is mounted below floor level or on a low kerb, leaving only the polished post and the glass edge visible for an uninterrupted frameless balustrade.
- Two-Bolt Clamp Plate: The removable front plate tightens with two hex bolts, gripping 10-12 mm tempered glass through a gasket set without any drilling of the glass.
- OEM / ODM Supported: Post height, base plate drilling pattern, glass thickness and surface finish of this fitting can be produced to your drawing.
* Mirror polished glass spigot post by Gorgeous Hardware.
G-C917 is a square glass spigot post made from stainless steel 304 for frameless glass balustrade on balconies, terraces, stair landings and walkways. The post stands 400 mm above the mounting surface, with a 40 x 40 mm square tube and a 78 x 78 mm base plate that fixes to concrete, steel or a timber kerb with four M8 anchors. Glass is held in a machined slot at the head of the post and locked by a bolted cover plate, so the post needs no through-hole in the glass and no heavy bottom rail.
The clamping face is fitted with EPDM gaskets so the tempered glass edge sits on a soft bearing surface, which removes point loads and lets the panel take wind and crowd pressure evenly. Two hex bolts per post allow the installer to set the plate square and to re-tension the joint after the glass is levelled. Because the post is mirror polished after welding, the tube, the cover plate and the base plate share one gloss level, which keeps a long run of balustrade visually consistent. Posts are normally supplied with matching base covers, handrail brackets and end caps, and every post in a project is drilled from the same jig so anchor positions repeat from bay to bay.
Technical Specifications
| Product Name | Square Glass Spigot Post | Model Number | G-C917 |
|---|---|---|---|
| Main Material | Stainless Steel 304 (SUS304) | Standard Finish | Mirror Polished (Satin / Brushed on request) |
| Application | Frameless glass balustrade: balconies, terraces, staircases, walkways | Fitting Type | Square glass spigot post, bolted clamp plate, surface mounted |
| Post Profile | 40 x 40 mm square tube, 400 mm above base | Glass Thickness | 10 - 12 mm tempered glass (Customizable) |
| Base Plate | 78 x 78 mm with 4 countersunk holes | Standard Package | Polybag + Inner Box + Export Carton |
| Warranty | 3 - 5 Years Guarantee | Place of Origin | Guangdong, China |
Why Specify This Glass Spigot Post
- Duplicated drilling: the base plate is jig-drilled, so anchor holes line up with the template across the whole balustrade run.
- No glass drilling: the bolted plate of the glass spigot post clamps the panel edge, so tempered glass arrives finished and cannot crack from a misplaced hole.
- Re-tensionable joint: two hex bolts stay accessible after installation, letting the post be adjusted when the panel is aligned and levelled.
- Marine grade corrosion resistance: stainless steel 304 suits interior and sheltered exterior use; grade 316 is available for coastal projects.
- Matched cosmetic finish: the mirror polish on the post is buffed in the same sequence as our handrail tube, so fitting and rail read as one system.
International Quality Certifications
Custom Packaging & On-Time Delivery Workflow
Comprehensive OEM & Branding Solutions
Factory Manufacturing & Production Lines
Global Exhibition & Customer Trust
Frequently Asked Questions (FAQ)
Ready to Specify Your Glass Spigot Post?
Send our engineering sales team your railing layout for wholesale step-pricing, a free sample and tailored OEM hardware. We reply within 8 business hours.
